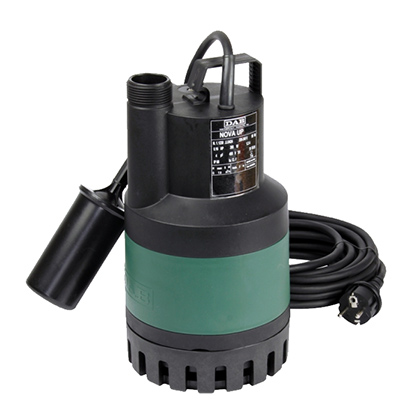

DAB NOVA UP 300

Vertical Delivery Draining Submersible Pump

Suitable for domestic automatically operated fixed applications.

This pump can be used with liquids containing solid particles of up to 10 mm in size. The level switch allows fixed installation, ensuring automatic operation.

With removable filter, it is capable of suction of up to a minimum of 2/3 mm (filter removed).

Features
Hydro resistant technopolymer pump body, cover, and suction grid.
Stainless steel motor, roto shaft, and bolts and screws.
Threefold seal with interposed rings with oil pre-chamber.
Submersible type continuous duty asynchronous motor.
Stator enclosed in airtight stainless steel casing, with an outer cover that protects the wiring and the capacitor.
Rotor running on permanently lubricated ball bearings, oversized to ensure low noise and durability.
Built-in thermal-amperometric protection and permanently connected capacitor.

Performance

SPECIFICATIONS
Model	HP
NOVA UP 300	0.28
