Aquea V-LOCK Skimmer Lids

V-lock sets the new standard for safe 8' concealed skimmer box access.

V-LOCK’s unique locking system provides superior safety for pool owners, and simplifies Australian standards compliance for pool builders.

The flush-fitting lid is easy to install and blends into the pool surrounds for a flawless finish every time. With a range of models to choose from, V-LOCK is the perfect solution to suit tile, stone and timber deck finishes.

Manufactured using advanced engineering polymers, V-LOCK delivers superior strength, rigidity and weatherability without the need for electrical bonding!

Features
Safe & Secure Lockable lid sets the new standard for safety and peace of mind.
Smart Design The V-LOCK Lid kit includes a spacer plate and adhesive for simple installation of all styles of tiling, paving and decking.
Durable Reinforced polymer construction for superior rigidity, strength and weatherability.
Seamless Finish Available in a range of depths to suit tile, stone and timber inlays.
No Bonding V-LOCK’s advanced polymer construction eliminates the need for electrical bonding.

Specifications
Model	Inlay Thickness	Internal Lid Depth	Part No.
V10	8-11 mm	12mm	475-201
V15	12-16 mm	18mm	475-203
V20	15-22 mm	23mm	475-205
V30	25-32 mm	33mm	475-207

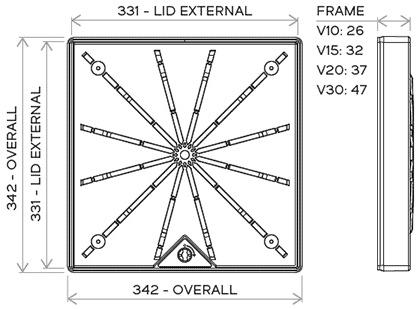

Dimensions
