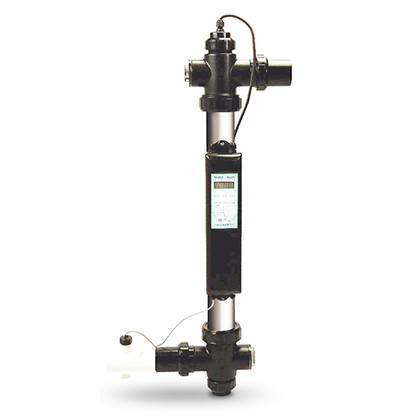

NanoTech UV-C

With Amalgam Lamps and Flow Switch.

Operating between low and medium pressure UV applications, NanoTech amalgam achieves a high relative power density operating in a broad temperature range.

The amalgam version includes a flow switch which will cut-off the lamp power to protect the system from over-heating when the water flow is lower than required.

Due to a special coating technology, NanoTech quarantees a continued performance of 85% after 12,000 hours operating in a broad temperature range. A timer version is available as an option.

Features
One model for Pool or Spa
Reduces Sanitiser Demand by up to 70%
12,000 Hour Lamp Life
Flow Rate up to 500lpm
Single Lamp c/w Hour Counter
Multiple Plumbing Options

Specifications
Code 230V	88049030
Model	NT-UV130TF
Max Flow Rate (m3/h)	30
Pool Vol (m3)	130
Input Power	130W
Maximum Pressure	3 bar
Connections	1.5"/50mm or 2"/63mm
Electric Ballast	240V AC
Maximum Current (A)	0.95
UV Lamp lifetime (hr.)	12,000
