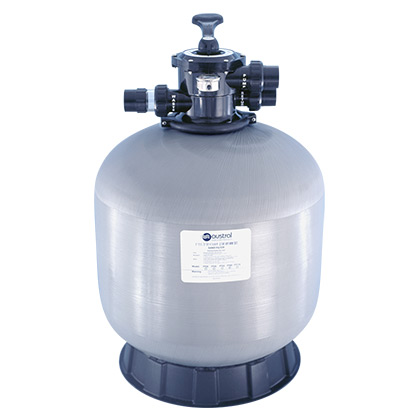

Filtron Media Filter

High Flow Media Filter.
Designed to last.

The Filtron™ range of media filters are manufactured using high grade fibreglass and resins utilising the latest engineering techniques ensuring high quality and superior strength for long life and durability.

The spherical shape and fibre winding pattern give the filter exceptional strength and resistance to chemicals and corrosion. Complimented with a six function multiport valve the Filtron™ filter will give years of trouble-free filtering.

Features
Fibreglass winding for exceptional strength
Clamp band 40mm multiport valves for easy installation and alignment
Six function multiport valve complete with quick connect barrel unions
High flow underdrain ensures efficient backwashing
Easy view backwash sight glass
Long life oil filled pressure gauge

Applications
Domestic swimming pools
Commercial swimming pools
Spa pools
Water features

Five Year Warranty
Full five year tank warranty
12 Month warranty on MPV and drain assembly

Specifications
Model	Filter Area	Pool Size ltrs	MPV/mm	Flow/lpm	Media/kg
FT35	0.13	25,000	40	108	40
FT45	0.16	35,000	40	135	50
FT55	0.22	45,000	40	185	75
FT80	0.32	65,000	40	260	125
FT110	0.40	90,000	40	325	200
FT130	0.50	110,000	50	415	350
FT180	0.64	160,000	50	520	450
FT225	0.79	200,000	50	650	625
FT340	1.13	310,000	50	860	850

Dimensions
Model	Height (mm)	Width (mm)
FT35	757	410
FT45	817	455
FT55	845	535
FT80-40mm	950	635
FT80-50mm	957	635
FT110-40mm	1020	710
FT110-50mm	1092	723
FT130	1200	800
FT180	1300	900
FT225	1400	1000
FT340	1600	1200

The manufacturer reserves the right to alter specifications without notice.
